The little
prodigy.

Power
under
control.

Brushless technology
Greater power
more torque.

Greater power
more torque.
A major attribute of Bien-Air micromotors is their elevated power output with constant torque for effective and effortless use.

Accurate
Control.

Accurate
Control.
The proprietary Smart Logic™ electronic control provides Bien-Air micromotors a step-less and vibration-less rotation, allowing for the most meticulous and precise dental work.

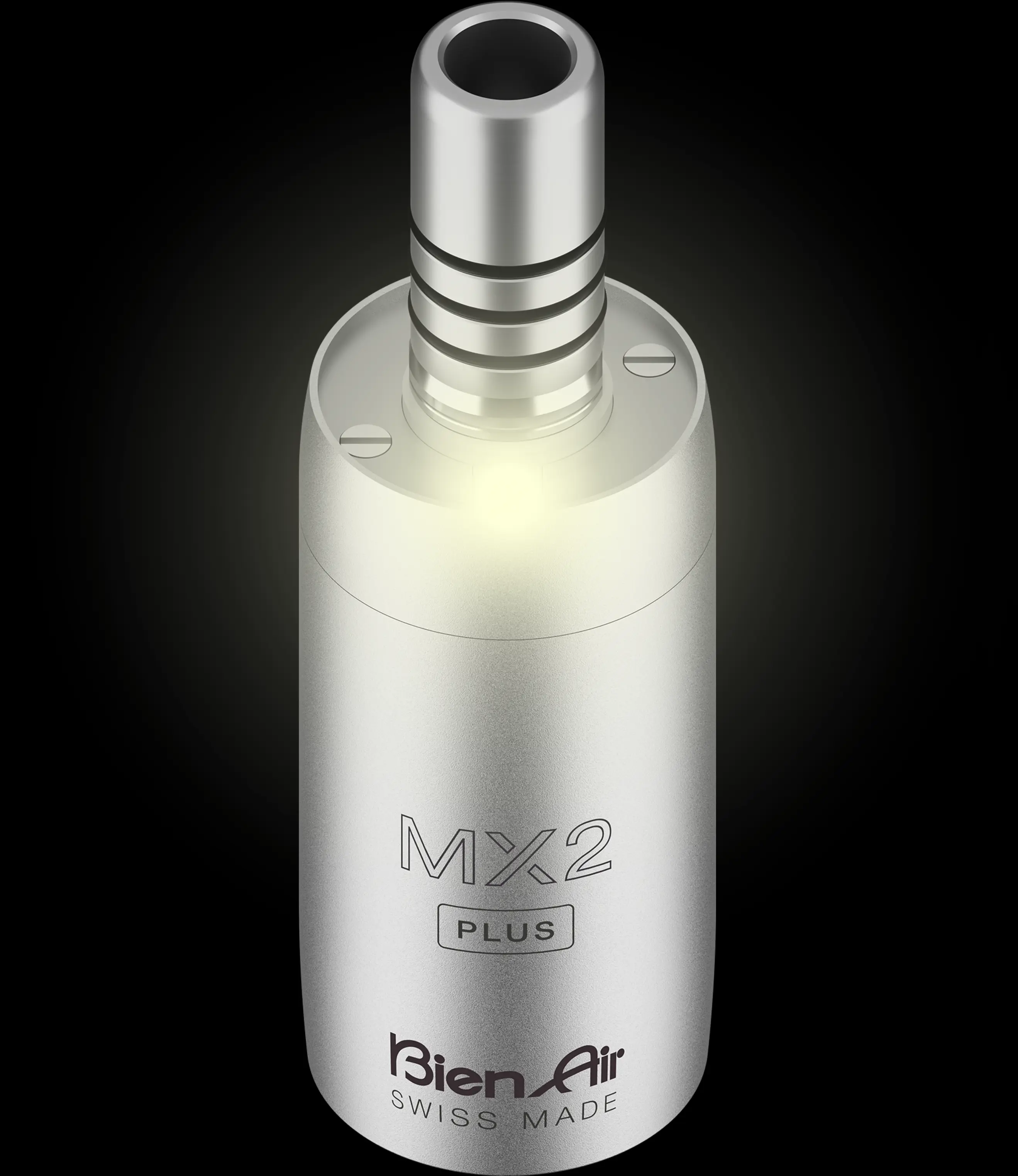

A new optimized design.

A new optimized design.
The use of the latest generation magnets enhance the perfomance of the MX2 Plus micromotor. The result is unparalleled balance and comfort, more power and perfect control on speed and torque.

A major attribute of Bien-Air micromotors is their elevated power output with constant torque for effective and effortless use.

The proprietary Smart Logic™ electronic control provides Bien-Air micromotors a step-less and vibration-less rotation, allowing for the most meticulous and precise dental work.

The use of the latest generation magnets enhance the perfomance of the MX2 Plus micromotor. The result is unparalleled balance and comfort, more power and perfect control on speed and torque.

Infin tely
small.

15%
shorter
than the previous
‍MX2 generation

Extremely
light.

12%
lighter
‍than the previous
MX2 generation

Shock resistant
stainless steel body.

Maintenance-Free.
Bien-Air micromotors’ ball bearings are greased for life, making no further greasing necessary.

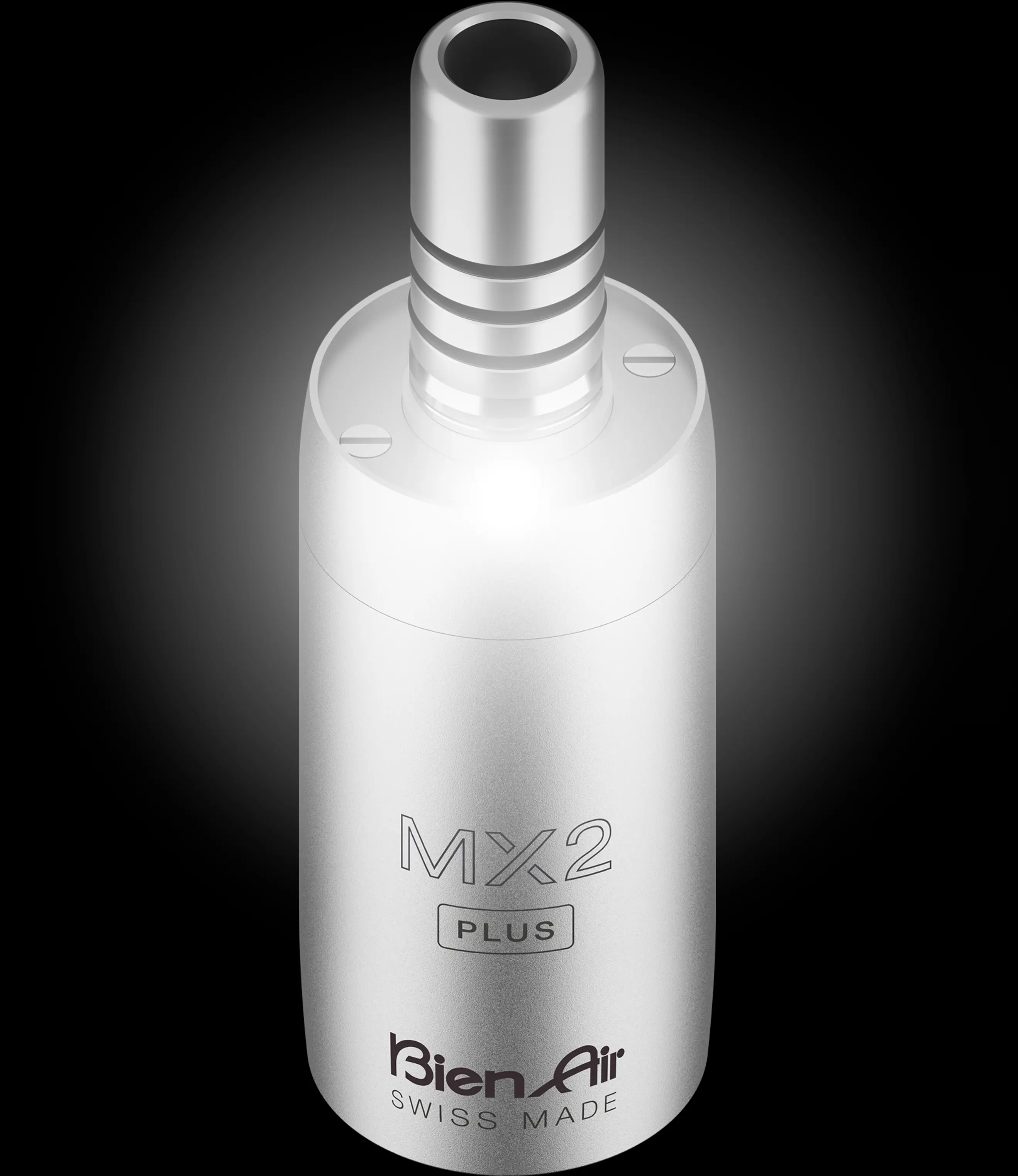

NEW
LED light.
Optimized light intensity and colour temperature  for a better comfort during your operations.
MX2 PLUS has been succesfully tested  at 10'000  working cycles, making proof of withstanding repeated sterilization cycles to respect the strictest hygiene standards.

Technical Data

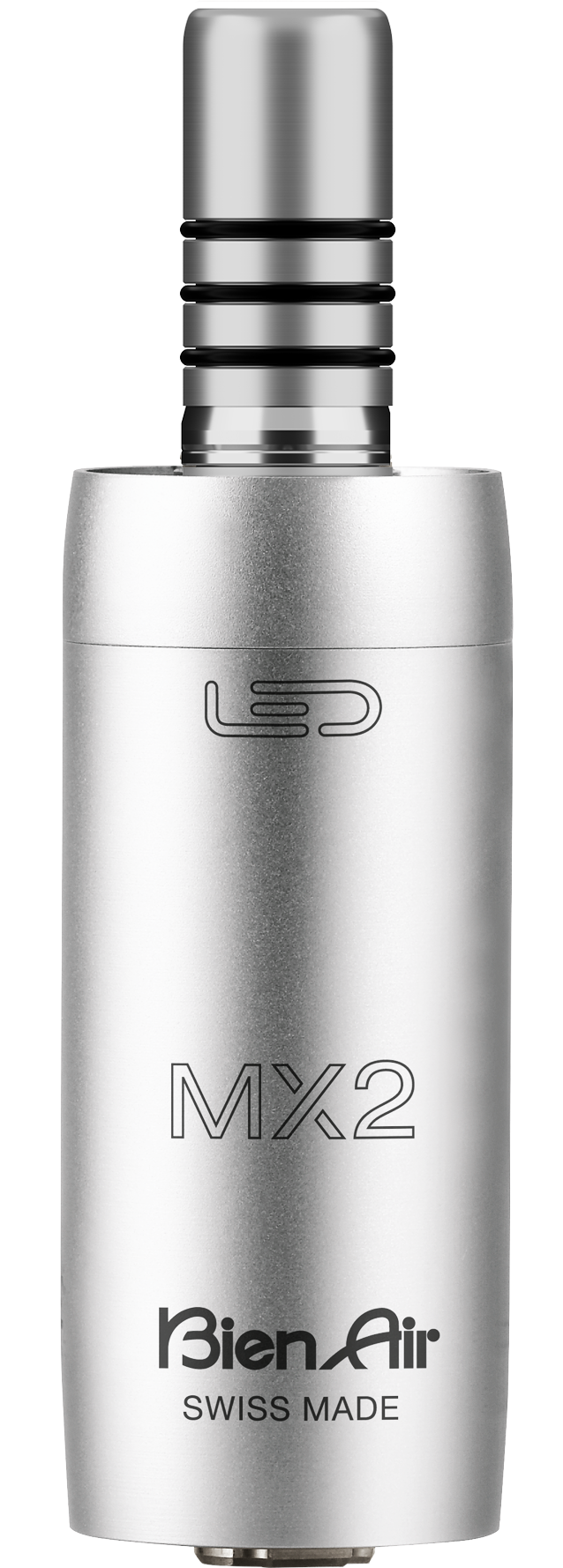

MX2 PLUS

Applications

Restorative, Prophylaxis,
Endodontics (Including reciprocating)

Type

Speed range

Max torque

Torque control

Weight (g)

Dimensions

Light

Max noise level

Sterilisable

Ball bearings

Material

Hose rotation *

Warranty

Reference

Brushless, internal spray
100-40,000 rpm
3.5 Ncm
Yes
79 gr
Ø 21 x 44 mm
LED with adjustable intensity
51 dBA
Yes
Life-time lubricated ball bearings
Stainless steel
± 200°
3 years 
1600677-001
*MX2 PLUS micromotor is compatible with all MX2 LED hoses.

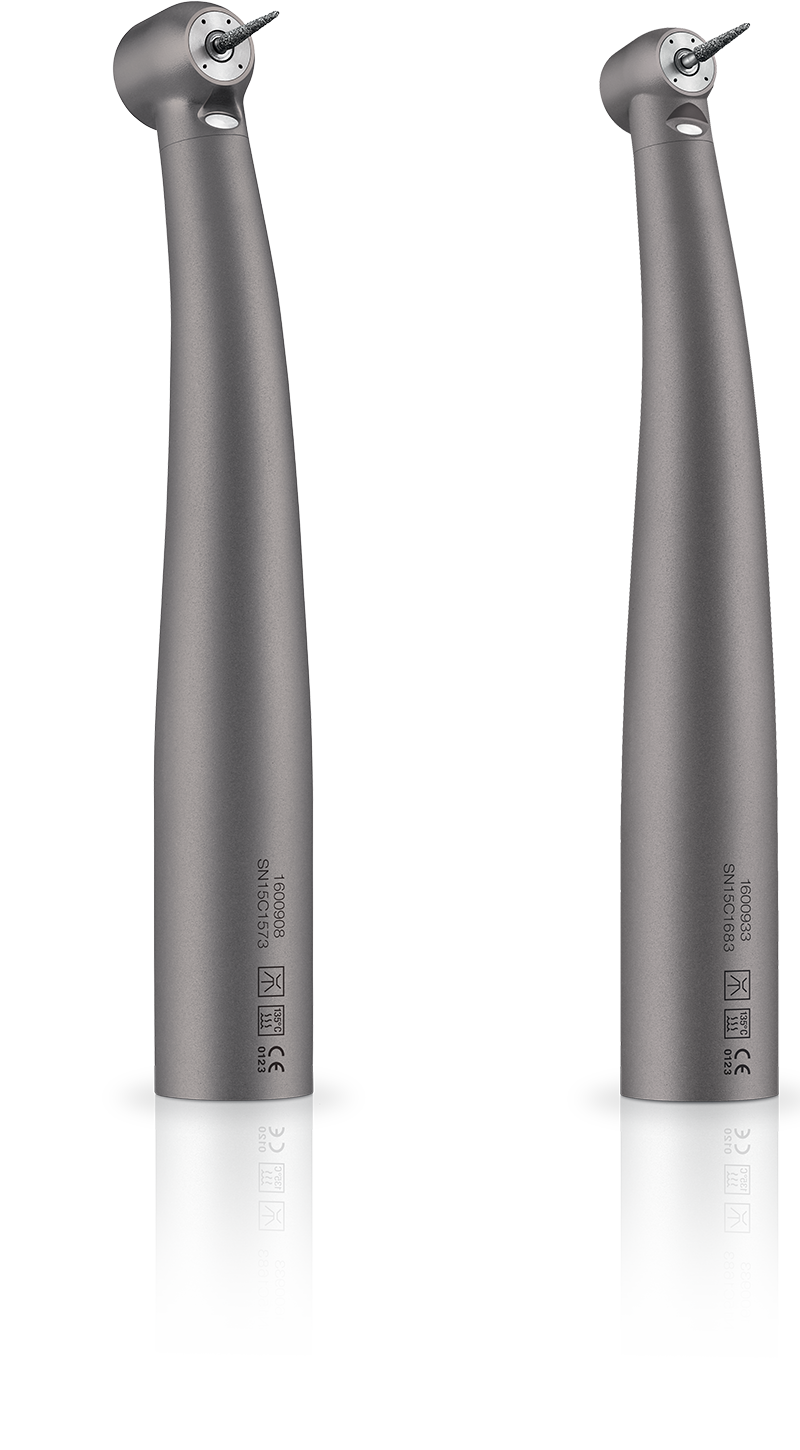

Technical Data

Tornado LED
Tornado LK
Tornados LK
Tornados LED

Power (W)

27*

Spray outlet

Noise level (dBa)

Head diameter (mm)

Head size (mm)

Rotation speed (rpm)

Light

Light intensity (klux)

Ceramic ball bearings

Weight (g)

Coupling

Warranty

Reference

4 asymmetrical mixed
55
12,2
13.1 mm (21.3 mm with  a 19 mm bur)
410’000
LED
Approx. 21
Yes
60
Unifix
2 years
Tornado LED 1600908-001
¹ Multiflex® is a registered trademark of KaVo Dental GmbH, Germany
*23 Watt according to new ISO ISO 14457:2017 standard. Tornado turbine is able to apply a transitory power at the bur of 30 W (during at least 1000 rounds), when the bur encounters an obstacle.

Power (W)

30*

Spray outlet

Noise level (dBa)

Head diameter (mm)

Head size (mm)

Rotation speed (rpm)

Light

Light intensity (klux)

Ceramic ball bearings

Weight (g)

Coupling

Warranty

Reference

4 asymmetrical mixed
55
12,2
13.1 mm (21.3 mm with  a 19 mm bur)
410’000
LED
Approx. 21
Yes
60
Multiflex® ¹
2 years
Tornado LK 1600907-001
¹ Multiflex® is a registered trademark of KaVo Dental GmbH, Germany
*23 Watt according to new ISO ISO 14457:2017 standard. Tornado turbine is able to apply a transitory power at the bur of 30 W (during at least 1000 rounds), when the bur encounters an obstacle.

Power (W)

23*

Spray outlet

Noise level (dBa)

Head diameter (mm)

Head size (mm)

Rotation speed (rpm)

Light

Light intensity (klux)

Ceramic ball bearings

Weight (g)

Coupling

Warranty

Reference

4 asymetrical mixed
58
10.9
12.2 mm (21.4 mm with  a 19 mm bur)
410’000
LED
Approx. 21
Yes
59
Multiflex® ¹
2 years
TornadoS LK 1600932-001
¹ Multiflex® is a registered trademark of KaVo Dental GmbH, Germany
*23 Watt according to new ISO ISO 14457:2017 standard. Tornado turbine is able to apply a transitory power at the bur of 30 W (during at least 1000 rounds), when the bur encounters an obstacle.

Power (W)

24*

Spray outlet

Noise level (dBa)

Head diameter (mm)

Head size (mm)

Rotation speed (rpm)

Light

Light intensity (klux)

Ceramic ball bearings

Weight (g)

Coupling

Warranty

Reference

4 asymmetrical mixed
58
10.9
12.2 mm (21.4 mm with  a 19 mm bur)
410’000
LED
Approx. 21
Yes
59
Unifix
2 years
TornadoS LED 1600933-001
¹ Multiflex® is a registered trademark of KaVo Dental GmbH, Germany
*23 Watt according to new ISO ISO 14457:2017 standard. Tornado turbine is able to apply a transitory power at the bur of 30 W (during at least 1000 rounds), when the bur encounters an obstacle.
